                FA C T S    TE C H N I C A L  DA T A :








_____________________________________________________________________________________________________


·            Wing

·            Engine

·            Propeller

·            Battery

·            Trike

·            Fuselage

·            Fuel tank

·            Top speed

·            Cruising speed

·            Non stop

·            Registration

-  RAVEN / Medway Microlights / design Roy Venton Walters

-  Limbach / 4 cylinder / 80hp / 4 stroke / dual magneto

-  Mühlbauer / MT propeller

-  Sonnenschein 23amp.

-  Partially self built

-  Own design / Kevlar reinforced with Carbon fibre

-  Fiberglas: 30 Imp. gallon / 36 US gallon / 135 litres

-  75 miles ph. / 120 km. ph

-  56/65 miles ph. - 90/105 km. ph.

-  719 miles / 1150 km. in no wind

-  France, district Tours:
F-28-AO

_____________________________________________________________







THE STAINLESS STEEL ENGINE MOUNT




The new engine mount (nick named Madonna). After months of struggling Eppo’s team still



did not manage to weld the stainless steel mount in such a manner that the bolt holes for the



engine would not twist out off place. In the end four oversized pieces of massive steel were



welded into the frame (see left photo) and milled level. After that, drilling the bolt holes in



the precise spot was as easy as pie. Eventually this solution came from Eppo himself and



was and was implemented ( free of charge) all through the night by Jan Dekker of Forto.





Trevor Barker, a former KLM employee re-welded the entire mount. What a first-class job!


_________________________________________________________________________




In Ben Meelhuizen's hangar at Hilversum airfield the 80-hp 4 cylinder Limbach strung



up for a trial fitting in the new engine mount. The horizontal bars became the new



strengthened Seat Frame.

____________________________________________________





At last, the engine snugly fitted in its support frame. Yet to accomplish were the cooling



ducts and shrouds. The Limbach engine was not supposed to run above 195 Celsius.

__________________________________________________________________________




The cooling ducts and shrouds were manufactured by Stephan Haak. Unfortunately the first



set (left) did not live up to its expectations during trial flights in the US. The second set (right)



functioned to perfection. The bottom ducts, because of their outward tapering shape create



a vacuum sucking the air through the cooling ribs. Once again a solution by Eppo.



___________________________________________________________________________








DEVELOPING ADAPTATIONS TO THE EXISTING TRIKE FRAME:




Stephan Haak connects the hoof iron-shaped Reynolds-503 Seat Frame. It was a novelty



that is was attached underneath the Base Tube, in a bracket developed by Stephan at KLM.



(see left hand photo below)

____________________________________________________




The Base Tube bracket – Jan Dekker developed the foot- steering and throttle

__________________________________________________________________________





The Seat Frame adhered to the fuselage with epoxy raisin and strips of Kevlar

___________________________________________________________________________




To prevent cold air getting into the fuselage, the existing nose fork too had to be replaced by



the one on the right.

___________________________________________________________________________







DEVELOPING THE FUSELAGE AND TRIKE ADAPTATIONS:




Eppo draws the 1/1 basic design for the fuselage in his living room.

__________________________________________________________________________





The 1/1 final sketch of the fuselage and trike frame adaptations.

__________________________________________________________________________





Franja Mora, a Yugoslav sculptor made the foam plug for the fuselage. Three months of



endless brainstorming, cutting and sanding resulted in a daily mountain of dust in Eppo’s



living room. But, in the end, it became an object of eye-catching beauty!

_________________________________________________________________________





The new frame and a fibreglass mock-up of the fuselage

_________________________________________________________________________





The Final Kevlar fuselage weighing 7 kilos. Next to it the 21 kilo fibreglass mock-up to



decide where to cut the holes in the original so as not to prematurely spoil it.

__________________________________________________________________________





The fuselage attached to the trike frame. Yet to construct was the fuel tank, sculptured by



Gerard Engels out of a block of foam. Enveloped by fibreglass and epoxy raisin, once



hardened the foam was diluted with a strong solvent. Dolf Backer, also the manufacturer



of the fuselage could finish the job. (see photos below)

__________________________________________________________________________





Dolf Backer: WWW.DUTCHCOMPOSITES.COM preparing the fuel tank plus its cover.

____________________________________________________





Glue the lid to the fuel tank, clamp it tight with some foam and planks,



wait for it to harden, and oopsy Daisy ready to go! Or so we thought!



First time filling her up? Leaking life a kitchen sieve. Dolf sped to a



scene of utter despair. Did he fix it? The fuel cap even got a lock.

___________________________________________________

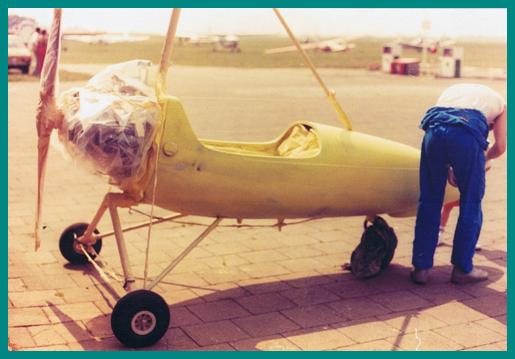

The fuselage in its first coat of KLM primer.

________________________________________________________________

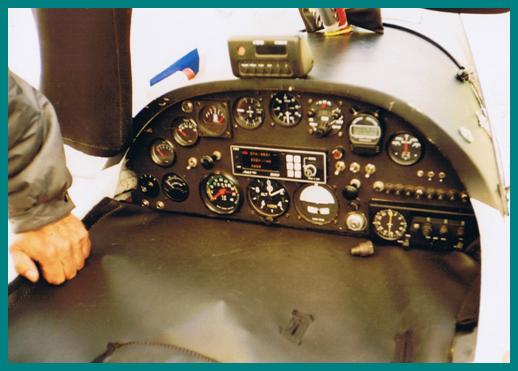

DASHBOARD - NAVIGATION & MOTOR INSTRUMENTATION:




Instrument panel and Kayak enclosure – the two slits are for a knee map roller

__________________________________________________________________________






NAVIGATIONAL AIDS:



o        Hamilton vertical card compass

o        Dittle 720 channel VHF radio (sponsored)

o         ADF (Automatic Direction Finder)

o         LORAN-C (long range navigation)

o        Air speed indicator

o        Vertical airspeed indicator

o        Turn and bank indicator

o        Altmeter in millibar

o        Altmeter in quick inches

o        Stopwatch

o        Knee map roller

o        All instrumentation is secured by circuit breakers



ENGINE INSTRUMENTS:



o        RPM + hour meter

o        Oil pressure gage

o        Oil temperature gage

o        Cylinder head temperature gage

o        Ampere gage

o        Voltage gage

o        Fuel flow gage

o        Carburettor heater

o        Foot throttle

o        Hand throttle

o        Spare throttle on a cord

o        Choke

o        Starter lock

o        Right magneto switch

o        Left magneto switch

___________________________________

o         Gyro compass  *

o         Transponder  *

________________________________

o         DF * (Direction Finder) was sponsored by the

      Icelandic company DNG




* The Transponder and Gyro compass were added in Iceland

___________________________________







MECHANISM TO MOUNT THE FLEXWING ONTO THE TRIKE:




When all was ready to put the wing for the first time onto the trike, quess what, the



nose of the trike was too long for the control bar of the A-frame to pass. Eppo came



up with this odd solution at the end of the afternoon. The very next morning it was



functional. Don’t ask how! It always took three people to put the wing onto the trike.



(see photos below)


____________________________________________________________________




First place the wing at one side of the trike – then place the Pylon Tube with the hinging ball joint in the engine mount – now just lift the



wing and gently let the Pylon Tube slide into the engine mount – then turn the wing into the direction of flight.




Don’t try this at home, especially not with the assistance of two over-enthusiastic tipsy fellows at 4 o’clock in the morning by the head-



lights of a car. This is what happened to Eppo flying from Dayton to Oshkosh just south of Chicago in 1987. All is well that ends well.

_____________________________________________________________________________________________________________







CLOTHING AND SURVIVAL GEAR:

_____________________________________


·         Silk head cap

·         Helly Hansen head cap

·         Neopreen head cap

·         Silk ski mask

·         Neopreen ski mask

·         Helly Hansen turtle neck

·         ALPHA Passenger helmet by HELMETS UK LTD. (sponsored)

_____________________________________



·         Helly Hansen polar underwear

·         Helly Hansen polar overalls

·         Silk socks

·         Helly Hansen polar socks

_____________________________________



·         F-16 survival suit – (sponsored by Helly Hansen Netherlands)

·         Eider down polar jacket

·         Goretex wind breaker

·         Moon boots

_____________________________________



·         Silk gloves

·         Woollen gloves

·         Helly Hansen polar mittens

·         Neopreen windsurf gloves (for emergancy taped on top of the dashboard)

_____________________________________



·     Under arm military life vest  (sponsored by INTAMAR LOGISTICS)




 Closed                              Opened


______________________________________


·     Rubber Dinghy




______________________________________



·     NATO ELT (emergency location transmitter) (sponsored by Mr. Tönis RADIO HOLLAND)




_____________________________________________________





·       Two GO-PLANE 100% Kevlar, carbon fibre reinforced floats / 39.6 lbs. each





______________________________________________________


·      Drinking water

·     Emergency food rations

·     Sea sick tablets

·     Sleeping tablets

·     Smoke flares

·     Night time flares

·     Signalling mirror

·     Whistle

·     First Aid kit

·     Medication

·     Insulating foil

·     Survival knife

·     Fire making equipment

·     Fishing tackle

·     Sewing gear

·     Black fly lotion

·     . . . etc.

_____________________________________



·     Spare parts

·     Basic tools

·     . . . etc.

_____________________________________



·     Limited leisure clothing

·     Toiletries

·     . . . etc.

_____________________________________









THE FRENCH REGISTRATION – THIS IS HOW IT WAS MAILED





What an absolute feast to receive ones registration mailed in this manner. Eppo: “All



these years I have treasured it like a valuable collectable!” Concerning and considering



the enormous hassle it took to get a registration at all, please read below.

______________________________________________________________________







During the first meeting with the Dutch CAA (FAA) about the adaptations for his Atlantic ultralight it was agreed, quote: “if the English manufacturer would agree to these changes, then, as far as they were concerned they saw no problems in supplying Eppo’s craft with a Dutch registration.


The English manufacturer Roy Venton Walters and former BOEING aircraft engineer Nout van Rooy got to work. Roy even, on Eppo’s request and cost travelled all the way to Holland. Extensive reports were made and typed out all through the weekend and all throughout the night as well, thanks to Patricia Rens.


Unfortunately, at the time the Dutch Civil Aviation Authorities did not have the capacity to handle his two-volume rapport. Considering the ample time left, it forced Eppo to seek sanctuary at a local flying club in Maintenon France. Thanks to their efforts, Eppo got his necessary registration.





“Yves Berger, Bernard et Janinne Hariscain, my sincerest gratitude”



However it did force him to take all his practical and theoretical exams all over again. In French at that!



_____________________________________________________________________________________________________












________________________________________________________________________



16-6-’89            Rotterdam Airport - Lydd UK               : 310 km         - 2.56 hrs.

_________________________________________________________________



16-6-’89            Lydd - Biggin Hill                               :  78 km          - 0.58 hrs.



18-6-’89            Biggin Hill - Stoke Kent                      :  45 km          - 1.02 hrs.



25-6-’89            Stoke - RAF Oakley                            :130 km          - 1.51 hrs.



26-6-’89            Wescott - Hinton in the Hedges           :  30 km          - 0.22 hrs.



27-6-’89            Hinton in the Hedges - Liverpool Int.   :185 km          - 3.44 hrs.

__________________________________________________________________



02-7-’89            Liverpool Int. - Glenn Forsa Mull         : 434 km          - 4.49 hrs.



05-7-’89            Glen Forsa Mull - Stornoway               : 218 km          - 2.01 hrs.

__________________________________________________________________



01-8-’89            Stornoway - Sorväg Faroer                 : 438 km          - 5.47 hrs.

__________________________________________________________________



07-8-‘89            Sorväg Faroer - Egilsstadir Iceland      : 503 km          - 5.11 hrs.



09-8-‘89            Egilsstadir  - Reykjavik                       : 401 km          - 4.26 hrs.

__________________________________________________________________



22-6-‘90            Reykjavik - Kulusuuk Greenland          : 736 km          - 6.58 hrs.



26-6-‘90            Kulusuuk - Sondrestromfjord              : 645 km          - 7.09 hrs.

__________________________________________________________________



01-7-’90            Sondrestromfjord - Cape Dyer Canada : 507 km          - 8.46 hrs.



02-7-’90            Cape Dyer - Iqualuit                            : 454 km           - 4.13 hrs.


07-7-’90            Iqualuit  - Quaqtaq                            : 306 km           - 5.55 hrs.



08-7-’90            Quaqtaq - Kuujjuaq                           : 389 km           - 4.10 hrs.



15-7-’90            Kuujjuuaq - Shefferville                         : 394 km           - 4.28 hrs.



15-7-’90            Shefferville - Wabush                           : 223 km           - 2.32 hrs.



18-7-’90            Wabush - Sept-Iles                            : 310 km           - 2.50 hrs.



21-7-’90            Sept-Iles - Rimouski                          : 261 km           - 3.30 hrs.



22-7-’90            Rimouski - Montreal St. Hubert              : 518 km           - 6.08 hrs.

__________________________________________________________________



26-7-’90            Montreal - Albany USA                       : 324 km           - 2.04 hrs.



01-8-’90            Albany  - Poughkeepsie                      : 140 km           - 1.34 hrs.



02-8-’90            Poughkeepsie - Miller Field Park NY     : 131 km           - 1.50 hrs.



03-8-’90            Miller Field Park - Teterboro NJ            :   37 km          - 0.24 hrs.

__________________________________________________________________



Total distance


Total air time



Distances over open water

Average speed

:   5092 miles


:   95.38 hrs.

:   1656 miles

:   53.31 mph


_______________________________________________________________________________________________________












_______________________________________________________________



After so many years the possibility exists that I may have overlooked mentioning a

certain person or company. If this is the case, to all of you who are not on this list

you should have been! My humble apologies to have forgotten you!

___________________________________________________________________________________________________




HUNTER DOUGLAS

Ralf Sonnenbergh

Gabriel Orechkoff

Rob van Oordt

John Brühl

Eveline Louis ***

Wim van de Hoek

Arie (de) Jager



- MAINSPONSOR

EMERY WORLD WIDE



HELMETS UK LTD


DITTLE RADIO



RADIO HOLLAND


INTAMAR LOGISTICS



HELLY HANSEN NETHERLANDS


SIMON BAKER



STUART AND PAMELA ELLIOT


ND MACLEOD


FOKKER


GUUS VAN ROMONDT


BRIDGE AIR


HELGI JONSSON


DNG DIRECTION FINDER


PRAKTIJK SICKESZ

- SPONSOR


- SPONSOR


- SPONSOR



- SPONSOR



- SPONSOR



- SPONSOR


- SPONSOR


- SPONSOR



- SPONSOR


- SPONSOR


- SPONSOR


- SPONSOR


- SPONSOR


- SPONSOR


- SPONSOR

___________________________________________________________________________________________






ASSISTENTS

Muriel Landberg ***

Rozemarijn Janssen





SURVIVAL TRAINING

Henk Jaarsveld





TWO YEARS FREE HANGAR SPACE

Ben Meelhuizen ***





FUSELAGE

Franja Mora

Dolf Backer www.doubledutch.eu

Gerard Engels





METAL WORK

Jan Dekker

Stephan Haak

Trevor Barker

Hans de Graaf

Peter Corstanje





RADIO TELEPHONY

Kas Beumkes





INSTALATION OF THE NAVIGATION EQUIPMENT

Ahrend Wijnrijg





CALCULATIONS

Nout van Rooy

Roy Venton Walters





EXTRAORDINARY ASSISTANCE

Her Majesty Queen Beatrix

Frits Bolkenstein

Hannah Strong

Kenneth Strong

Bonnie Mulroney

Joe Plascett

US Airforce





PHOTOGRAPHY

Joop Rijngoud

Mark Greenberg

Jeffrey Vock

Eppo Numan





LIVERPOOL

Air Nova

Ray Grainer

Mick Scrivens





ICELAND

Otmar Ragnarsson

Hotel Loftlyedir

Stålvinslan

Thormunder

Nils Gislason      Developed and build the Direction Finder - It saved Eppo’s life!





DAYTON OHIO

JR Wedekind

Mary Bogumill ***

Ron Manneman ***

Lary Newman

Leo Janssens

Don Mounce

Mike Bogumill ***

Jane Manneman ***





OSHKOSH - EAA

Tom Poberezny

Mary Jones ***





ARIZONA

Hopi Nation





MISCELLANEOUS

Erica de Wit ***

Henk Stam ***

Dennis Darrach ***

Aad de Bruin / Loran-C ***

Belko

Patricia Rens

Kees Evenblij

Lily van Oyen

Hennie Dulfer Vos

Bernard en Janinne Hariscain

David Howitt

Patt Epps

Equity & Law

Annemiek Poelman

Thormunder Iceland

Rachid Morstani

Ard-Jan Barnas

Leonard Harbrink Numan

May Parijs

Onni de Jonge





CHASE PLANES

Helgi Jonsson

Doug Epps

Pat Epps





STAFF AND GROUND PERSONEL OF THE FOLLOWING AIRFIELDS

Pizay *

Tavaria

Hilversum

Lelystad

Le Bourget

Dayton International *

Randolph County Winchester IN

Fulton County Rochester IN

Hobart Sky Ranch IN

Wabash IN

Fox River Rochester WI *

Andy Barnhart Memorial - New Carlisle OH *

Hobart Oshkosh *

Allegheny County - Pittsburgh

Montgomery County Airpark

Pennrigde

Sommerset

Linden New Jersey

Berck Plage

Zestienhoven

Lydd

Biggin Hill *

Stoke airfield *

Wescott

Hinton in the Hedges *

Liverpool International *

Glen Forsa Mull

Stornoway *

Sorväg

Egilsstadir

Reykjavik *

Kulusuk

Sondrestromfjord

Cape Dyer

Iqaluit - Frobisher Bay

Quaqtaq

Kuujjuaq *

Shefferville

Wabush

Sept - Iles

Rimouski

Montreal St. Hubert *

Albany International

Dutchess County Poughkeepsie

Miller Field Park NY *

Teterboro NY

Springfield *

Effingham

Salem

Rolla Down Town *

Monett

Miami

Ponca City

Medford

Woodward *

Perryton

Spearman *

Dalhart

Santa Fé *

Boregopass road *

Holbrook

Kykotsmovi *

Polacca *

Winslow

Kayenta

Farmington

Española (abandoned)

Crestone (abandoned) *

Nat. Sand Dune Monument *

Lamar *

Superior

Ames *

Boscobel

Baraboo

Portage

Oshkosh *



___________________________________________________________________________________________










Lay out and text © Eppo Harbrink Numan 2007 - Website construction and hosting Richard Bakker AHCS
